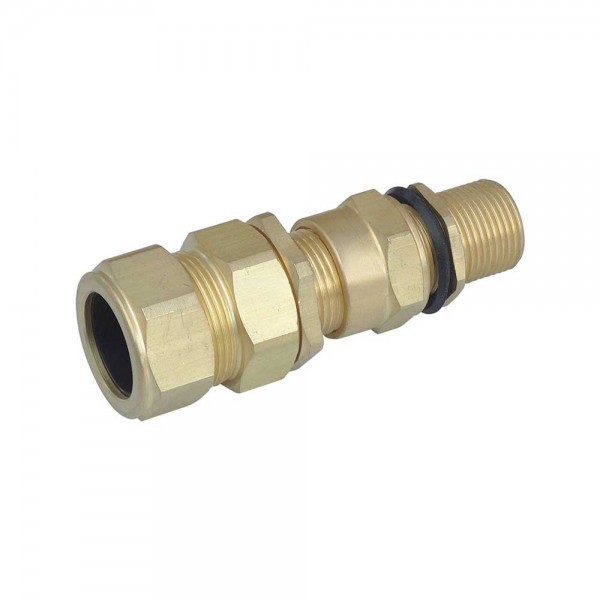

E1W Tip Zırhlı Metal Kablo Rakoru (IP68)

Büyük resmi görmek için tıklayın

Metrik Kod	Metrik Tip Ölçü	NPT Kod	NPT Tip Ölçü	Pg Kod	Pg Tip Ölçü	Kablo Çapı				Diş Boyu (mm)	Köşe Çapı Ø (mm)
						Zırh Altı (A)		Zırh Üstü (B)
						Min	Max	Min	Max
R-E1W/12/M12	M12x1,5	R-E1W/12/1/4"	1/4"	R-E1W/12/Pg7	Pg7	4	9	6	11	15	21
R-E1W/16/M16	M16x1,5	R-E1W/16/3/8"	3/8"	R-E1W/16/Pg9	Pg9	5	10	11	13	15	26
R-E1W/20s/M20	M20x1,5s	R-E1W/20s/1/2"	1/2"	R-E1W/20s/Pg11	Pg11	6	11	11	15	15	27
R-E1W/20/M20	M20x1,5	R-E1W/20/1/2"	1/2"	R-E1W/20/Pg13/16	Pg13,5/16	6	13	15	20	15	33
R-E1W/25/M25	M25x1,5	R-E1W/25/3/4"	3/4"	R-E1W/25/Pg21	Pg21	11	19	20	27	15	41
R-E1W/32/M32	M32x1,5	R-E1W/32/1"	1"	R-E1W/32/Pg29	Pg29	17	26	26	33	15	51
R-E1W/40/M40	M40x1,5	R-E1W/40/1/4"	1 1/4"	R-E1W/40/Pg36	Pg36	22	32	31	40	15	61
R-E1W/50s/M50	M50x1,5s	R-E1W/50s/2 1/2"	1 1/2"	R-E1W/50s/Pg42	Pg42	29	37	36	46	15	67
R-E1W/50/M50	M50x1,5	R-E1W/50/2"	2"	R-E1W/50/Pg48	Pg48	36	44	43	54	15	78
R-E1W/63s/M63	M63x1,5s	R-E1W/63s/2"	2"	---	---	40	50	49	59	15	83
R-E1W/63/M63	M63x1,5	R-E1W/63/2 1/2"	2 1/2"	---	---	47	55	58	65	15	89
R-E1W/75s/M75	M75x1,5s	R-E1W/75s/2 1/2"	2 1/2"	---	---	53	62	61	72	16	100
R-E1W/75/M75	M75x1,5	R-E1W/75/3"	3"	---	---	59	68	65	78	16	110
R-E1W/90/M90	M90x1,5	R-E1W/90/3"	3"	---	---	67	79	77	90	18	129
R-E1W/100s/M100	M100x1,5s	R-E1W/100/3 1/2"	3 1/2"	---	---	70	84	77	91	18	136
R-E1W/100/M100	M100x1,5	R-E1W/100/4"	4"	---	---	75	90	86	99	20	136
